Innovation Ecosystems Ontology

IRI:
http://inneo.linkeddata.es
Date:
09/05/2019
Authors:
Alberto Tejero
Contributors:
Víctor Rodríguez-Doncel
Other visualisation:
Ontology source
Download serialization:
RDF/XML Turtle
License:
Creative Commons Attribution 4.0

Table of Content

  1. Introduction
  2. Classes
  3. Object Properties
  4. Data Properties
  5. Annotation Properties
  6. Namespace Declarations

Introduction

The Innovation Knowledge Graph ontology / Innovation Ecosystem Ontology (INNEO) is an ontology used to describe innovation ecosystems.

The goal of this effort is to support the decision making of managers, actors and policy makers of the innovation ecosystem

This ontology can be used for:

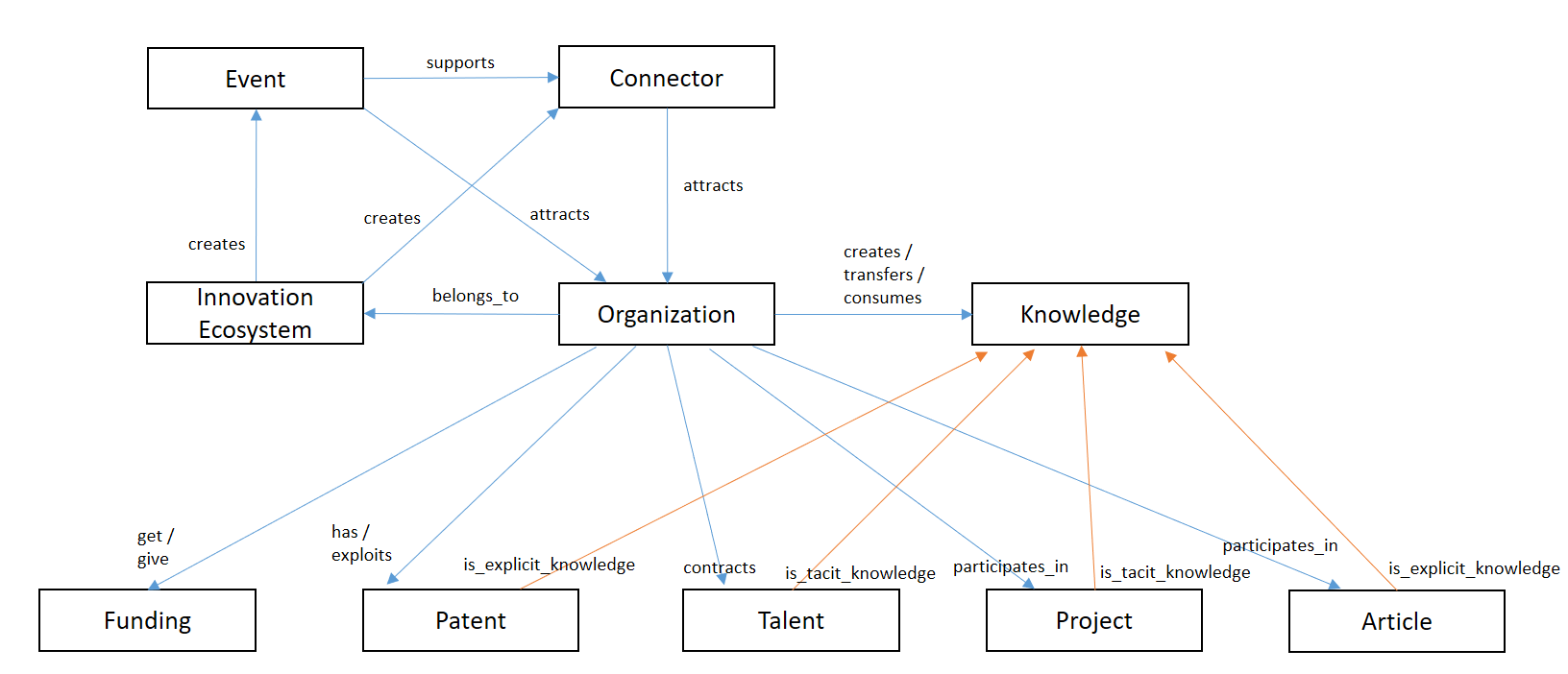

Figure 1. Main diagram.

Classes

articlec back to ToC or Class ToC

IRI: http://inneo.linkeddata.es#Article

An article is a written work published in a print or electronic medium, for the purpose of propagating news, research results, academic analysis, or debate

connectorc back to ToC or Class ToC

IRI: http://inneo.linkeddata.es#Connector

Connectors are timeless elements, used by the organizations of the ecosystem in a recurrent way to interrelate them in a voluntary basis, without being forced to do so.

eventc back to ToC or Class ToC

IRI: http://inneo.linkeddata.es#Event

Events are elements associated to specific moments in time, which provoke the interaction of organizations of the ecosystem around a specific connector or set of connectors.

Explicit Knowledgec back to ToC or Class ToC

IRI: http://inneo.linkeddata.es#ExplicitKnowledge

Explicit knowledge refers to that type of knowledge that has been or can be articulated, codified and stored in some kind of medium. (such as defined Nonaka and Takeuchi, 1995)
has super-classes
knowledgec

fundingc back to ToC or Class ToC

IRI: http://inneo.linkeddata.es#Funding

Funding is the act of providing financial resources, usually in the form of money, or other values such as effort or time, to finance a need, program, and project, usually by an organization or company (definition by Wikipedia)

Innovation Ecosystemc back to ToC or Class ToC

IRI: http://inneo.linkeddata.es#InnovationEcosystem

A dynamic system made up by actors and connected by knowledge flows based on the relationships of these actors
is in domain of
dynamismdp, efficiencydp, has organizationop, innovation ecosystem typedp, relevancedp, scopedp

knowledgec back to ToC or Class ToC

IRI: http://inneo.linkeddata.es#Knowledge

In the context of innovation, knowledge is the "element" created, transferred and consumed by the organizations of the innovation ecosystem.
has sub-classes
Explicit Knowledgec, Tacit Knowledgec

Organizationc back to ToC or Class ToC

IRI: http://inneo.linkeddata.es#Organization

Organization represents a collection of people organized together into a community or other social, commercial or political structure, who share common goals
is in domain of
has patentop, has relationop, type of innovation applicationdp
is in range of
has organizationop, has relationop

Patentc back to ToC or Class ToC

IRI: http://inneo.linkeddata.es#Patent

A patent is a form of intellectual property. A patent gives its owner (organization or person) the right to exclude others from making, using, selling, and importing an invention for a limited period of time, usually twenty years. (such as defined as Wikipedia)
is in range of
has patentop

projectc back to ToC or Class ToC

IRI: http://inneo.linkeddata.es#Project

Contemporary business and science treat as a project any undertaking, conducted individually or collaboratively and possibly involving research or design, that is carefully planned to achieve a particular aim. (definition by Wikipedia)

Tacit Knowledgec back to ToC or Class ToC

IRI: http://inneo.linkeddata.es#TacitKnowledge

Tacit knowledge is highly personal (held within the holder), subjective, difficult to formalize, articulate and communicate fully, experience based, contextualized, job specific, transferred through conversation or narrative, not captured by formal education or training and may even be subconscious but capable of becoming explicit knowledge. (such as defined by Nonaka and Takeuchi, 1995)
has super-classes
knowledgec

talentc back to ToC or Class ToC

IRI: http://inneo.linkeddata.es#Talent

A talent is a group of aptitudes useful for some activities, which is normally represented or accumulated in one or more persons.

Object Properties

creates eventop back to ToC or Object Property ToC

IRI: http://inneo.linkeddata.es#createsEvent

has super-properties
top object property

has organizationop back to ToC or Object Property ToC

IRI: http://inneo.linkeddata.es#hasOrganization

Innovation ecosystems are dynamic systems made up by organizations and connected by knowledge flows based on the relationships of these organizations
has domain
Innovation Ecosystemc
has range
Organizationc

has patentop back to ToC or Object Property ToC

IRI: http://inneo.linkeddata.es#hasPatent

has domain
Organizationc
has range
Patentc

has relationop back to ToC or Object Property ToC

IRI: http://inneo.linkeddata.es#hasRelation

Def. Organization participating in a relation
has super-properties
top object property
has domain
Organizationc
has range
Organizationc

participates in projectop back to ToC or Object Property ToC

IRI: http://inneo.linkeddata.es#participatesInProject

has super-properties
top object property

Data Properties

dynamismdp back to ToC or Data Property ToC

IRI: http://inneo.linkeddata.es#dynamism

Dynamism is defined as the capacity of movement of knowledge through actors and their relationships within the innovation ecosystem
has domain
Innovation Ecosystemc
has range
float

efficiencydp back to ToC or Data Property ToC

IRI: http://inneo.linkeddata.es#efficiency

Efficiency is defined as the capacity to transform knowdlegde in useful resources for the ecosystem and its context
has domain
Innovation Ecosystemc
has range
float

innovation ecosystem typedp back to ToC or Data Property ToC

IRI: http://inneo.linkeddata.es#innovationEcosystemType

Innovation ecosystems are dynamic systems made up by actors and connected by knowledge flows based on the relationships of these actors
has domain
Innovation Ecosystemc

origindp back to ToC or Data Property ToC

IRI: http://inneo.linkeddata.es#origin

has super-properties
top data property

relevancedp back to ToC or Data Property ToC

IRI: http://inneo.linkeddata.es#relevance

It represents how relevant an innovation ecosystem is for economic growth of its context
has domain
Innovation Ecosystemc
has range
float

scopedp back to ToC or Data Property ToC

IRI: http://inneo.linkeddata.es#scope

Gives a description about the belonging of an innovation ecosystem, for example an entity as the Universidad Politécnica de Madrid, or even a region as Madrid
has domain
Innovation Ecosystemc

type of innovation applicationdp back to ToC or Data Property ToC

IRI: http://inneo.linkeddata.es#typeOfInnovationApplication

has domain
Organizationc

Annotation Properties

exact matchap back to ToC or Annotation Property ToC

IRI: http://www.w3.org/2004/02/skos/core#exactMatch

Namespace Declarations back to ToC

default namespace
http://inneo.linkeddata.es#
dct
http://purl.org/dc/terms/
org
http://www.w3.org/ns/org#
owl
http://www.w3.org/2002/07/owl#
rdf
http://www.w3.org/1999/02/22-rdf-syntax-ns#
rdfs
http://www.w3.org/2000/01/rdf-schema#
skos
http://www.w3.org/2004/02/skos/core#
xsd
http://www.w3.org/2001/XMLSchema#

This HTML document was obtained by processing the OWL ontology source code through LODE, Live OWL Documentation Environment, developed by Silvio Peroni.
